MightyBox SSH Gate Overview
SSH (Secure Shell) is a protocol used to connect securely to a remote container and execute the required commands on it. SSH commands are encrypted and secure: client/server connection is authenticated using a digital certificate, and passwords are protected by being encrypted.

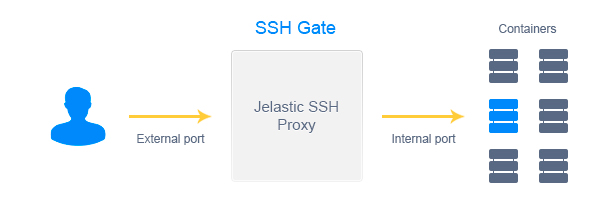

To make SSH access available in MightyBox, a new infrastructure component was added to the core - SSH Gate. SSH Gate accepts users' connections from the internet and then transmits these connections to the desired container, using an internal network.
The authentication procedure in MightyBox SSH Gate is divided into two independent parts:
- connection from end user to Gate (external authentication)
- connection from Gate to users' container (internal authentication)
Both parts of the authentication procedure are based on a standard SSH protocol, using public/private keypairs.
With MightyBox SSH Gate, you can easily access:
- the whole account where you can navigate across your environments and containers using an interactive menu without extra authentication
- separate containers directly while working with them remotely via additional tools (e.g. Capistrano) or using SFTP and FISH protocols.
While accessing containers via SSH, a user receives all required permissions and additionally can manage the main services with sudo commands of the following kind (and others):
sudo /etc/init.d/jetty start sudo /etc/init.d/mysql stop sudo /etc/init.d/tomcat restart sudo /etc/init.d/memcached status sudo /etc/init.d/mongod reload sudo /etc/init.d/nginx upgrade sudo /etc/init.d/httpd help
In addition, we provide support of SFTP (Secure File Transfer Protocol) by implementing the threaded daemon for SFTP connections processing. It lets you access, manage and transfer files directly to the container via SSH gate, and in such a way, ensures data security.
An additional secure network protocol is FISH (Files transferred over Shell protocol). It is supported by a number of popular FTP-clients and file managers (e.g. Midnight Commander, Konqueror, lftp, Krusader, etc) and permits a user to securely access and manage a container’s file system.
